Khetala Wires are processed using a Zero Halogen Flame Retardant compound (ZHFR). The insulation is of superior quality, 100% PYC free and eco-friendly. In case of a fire situation ZHFR wires does not emit toxic or poisonous fumes, which enables safe evacuation. These wires are best suited for wiring in hospitals, hotels, business establishments and high-rise buildings where fire can be detrimental.
The conductors, drawn from bright electrolytic grade copper, are annealed and bunched together.
Bunched, specially formulated grade of Halogen Free Flame Retardant (HFFR) compound is used. The insulation does not melt or drip in case of fire. The smoke emission is transparent, non-toxic and minimal. The victims trapped in the fire do not suffer suffocation and evacuation is convenient.
The cables are printed with generic marking 'Khetala'.

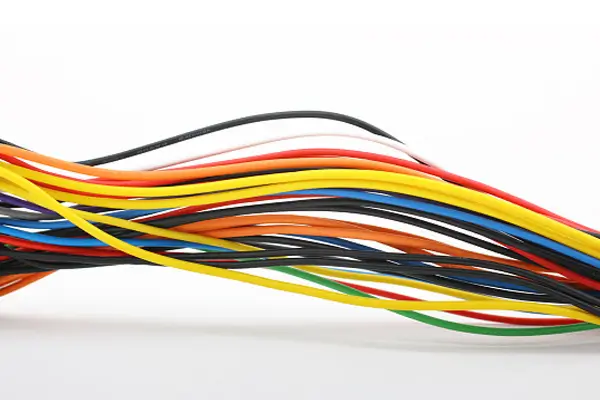

Red, Yellow, Blue, Black, Green and Grey. Any other colors on specific request can also be supplied.
90 Meters (approx. 100 yards) pack in protective cartons.
| Cable Design Parameters | ||||||
|---|---|---|---|---|---|---|
| Nominal Area of Conductor (Sq. mm.) |
Number/ Nom. Dia. of Cables (No./dia. mm) |
Nominal Insulation Thickness (mm) |
Nominal Overall Diameter (mm) |
Current Carrying Capacity (Amp.) |
D.C. Resistance (Max.) at 20°C Ohm/Km |
|
| Casing | Concealed | |||||
| 0.5 | 16/.20 | 0.6 | 2.4 | 5 | 4 | 39 |
| 0.75 | 24/.20 | 0.6 | 2.8 | 8 | 7 | 26 |
| 1 | 14/.30 | 0.6 | 3 | 12 | 11 | 19.5 |
| 1.5 | 22/.30 | 0.6 | 3.4 | 16 | 13 | 13.3 |
| 2.5 | 36/.30 | 0.7 | 4.1 | 22 | 18 | 7.98 |
| 4 | 56/.30 | 0.8 | 4.8 | 29 | 24 | 4.95 |
