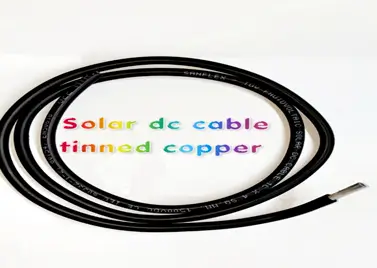

Khetala cables are designed for connecting photovoltaic power supply systems. They are dedicated to the photovoltaic system direct current (D.C.) side with a nominal D.C. voltage of a 1.5kV. These cables can be used indoor & outdoor for flexible and fixed installations with high mechanical strength in extreme weather conditions. cables are designed to withstand the demanding environmental conditions that arise in any fixed, mobile, roof or architecturally integrated photovoltaic installation.
Conductor: Flexible Tinned fine copper strands, acc. To IEC 60228, class 5
Insulation: Crosslinked Halogen Free/ Flame Retardant Insulation/ Type A Pvc, Color : Grey
Outer Sheath: Crosslinked Halogen Free/ Flame Retardant UV and Sheath in Black or Red
Electrical:
Temperature Thermal Characteristics:
| Solar DC Cable as per Specification: EN 50618 : 2014 | ||||||
|---|---|---|---|---|---|---|
| Single Core In (Sq. mm.) |
Insulation Thickness (In mm.) |
Sheath Thickness (In mm.) |
Overall Diameter (In mm.) |
Tolerance on Diameter | Tinned Cu.Max. Rest. (@20°c) |
Current Carraying Capc. (In Air.) |
| 1.5 | 0.7 | 0.8 | 4.8 | +/ - 0.4 | 13.7 | 30 |
| 2.5 | 0.7 | 0.8 | 5.2 | +/ - 0.4 | 8.21 | 41 |
| 4 | 0.7 | 0.8 | 5.5 | +/ - 0.4 | 5.09 | 55 |
| 6 | 0.7 | 0.8 | 6 | +/ - 0.4 | 3.39 | 70 |
| 10 | 0.7 | 0.8 | 6.2 | +/ - 0.4 | 1.95 | 95 |
| 16 | 0.7 | 0.8 | 7.8 | +/ - 0.4 | 1.24 | 130 |
